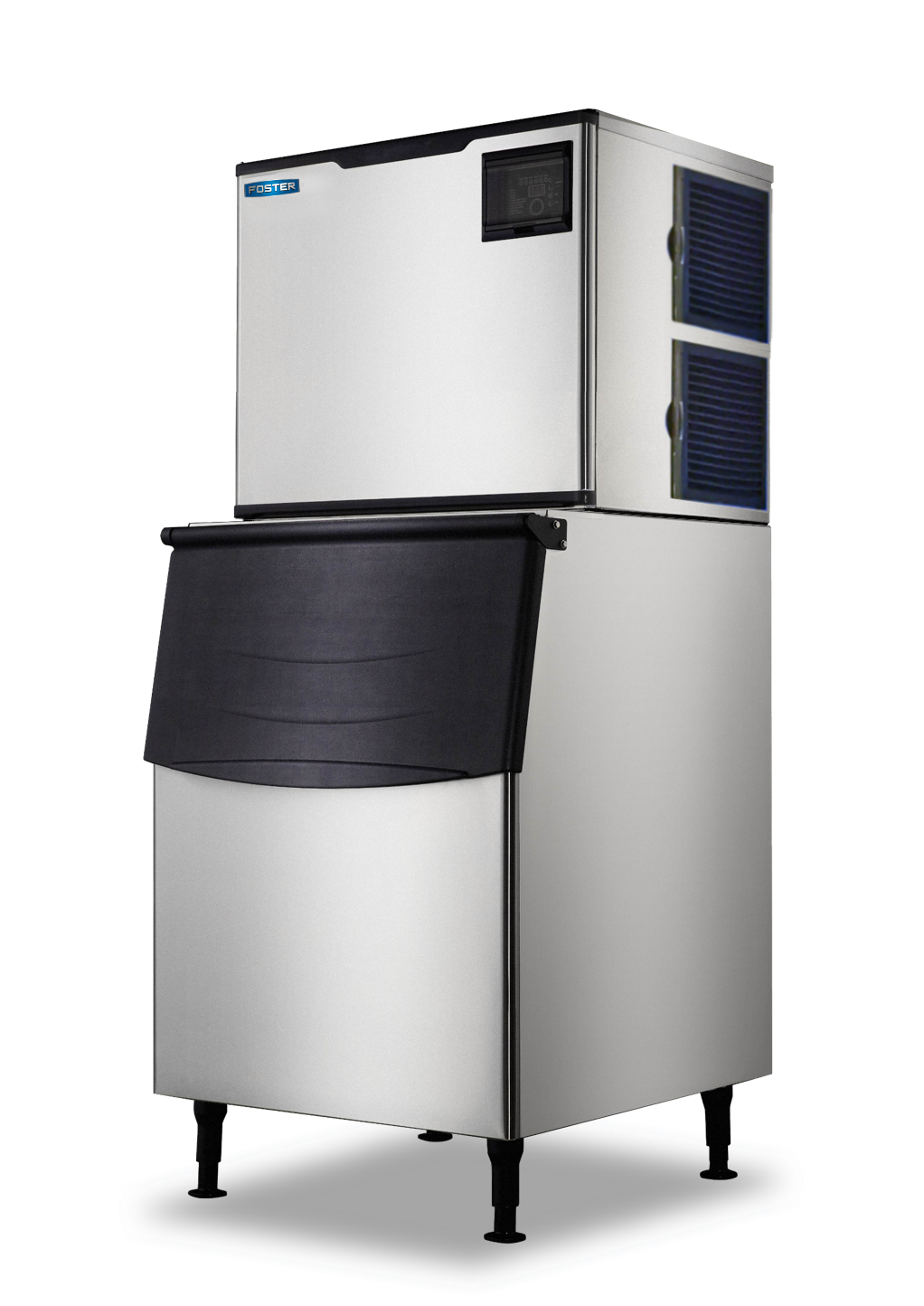

Foster Ice Machine Air-Cooled FIM-505-F 502 Lbs. With 375 Lbs. Bin

Foster Ice Machine Air-Cooled FIM-505-F 502 Lbs. With 375 Lbs. Bin

Regular price $2,929.00
Regular price Sale price $2,929.00
Sale Sold out
Shipping calculated at checkout.

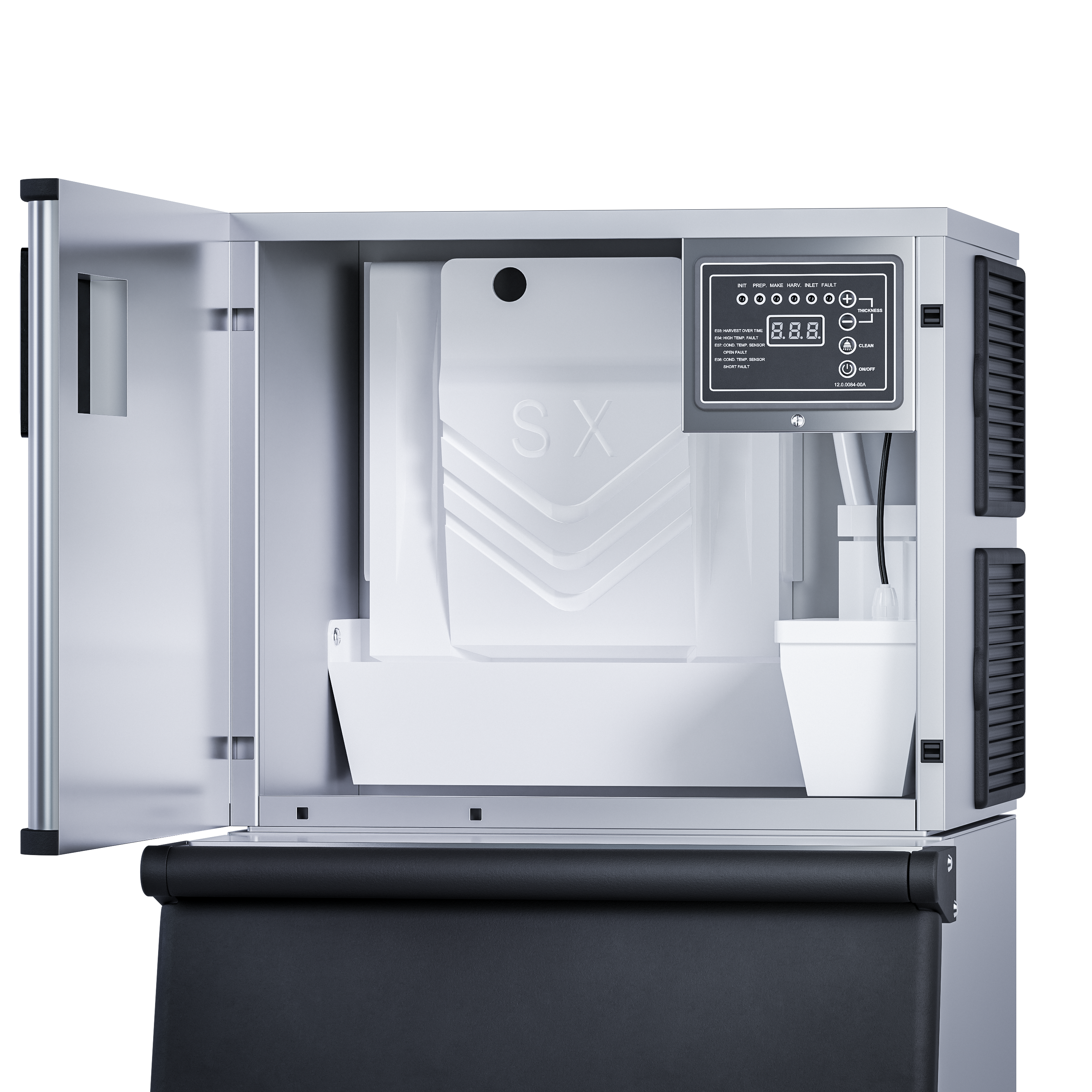

Make sure you've always got plenty of fresh ice on hand with the Foster Fim-505 air cooled modular Ice Making Machine with bin! Capable of producing up to 500 lbs. of cube ice per day, you'll always have plenty of ice to serve on demand. Not only that, with an included ice bin that holds an impressive 375 lb. of ice, this ice machine and bin are perfect for having a robust supply of ice at all times. This Machine also comes with an ice scoop and basic cotton filter. For ease of maintenance, a built-in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in. Thanks to their durable type 304 stainless steel construction with polyethylene interiors, these units are built to last, and a blue LED light in the bin for easy dispensing of ice. Plus, (4) 6" adjustable legs stabilize the unit on uneven floors. A nickel-plated evaporator and removable air filter make for quick and simple cleaning and maintenance. The ice machine comes with pre-drilled holes on the back of the unit to mount your water filter to the machine to ensure you are serving the cleanest and freshest ice possible. The ice machine is also designed for side-breathing and rear exhaust, which prevents hot air from being blown outward into your kitchen or service area. This unit requires a 115V electrical connection for operation.


• Modular Design

• Makes up to 500 lbs. Per Day

• Stainless Steel

• Quiet Operation

• Basic Water Filter Included

• NSF Approved, ETL Listed

• 115 Volt 20 Amps

• Cord and Plug Included (NEMA 20)

• 1 Year Warranty on Parts and Labor, 3 Year Warranty on Compressor


Dimensions (DWH)in 30x33x66
output(LB)/24Hr 500 lb/227kg
Ice Shape Full dice
Bin Capacity 375 lb/170 kg
Voltage 115(V)
Watts 1340(W)
Condenser unit Air/water
Refrigerant R404A
Net weight of head 145 (lb)
Net weight of bin 100(lb)
Gross weight of head 155(lb)
Gross weight of bin 110(lb)
Carton dimensions of head 34x28x25
Carton dimensions of bin 36x34x42
